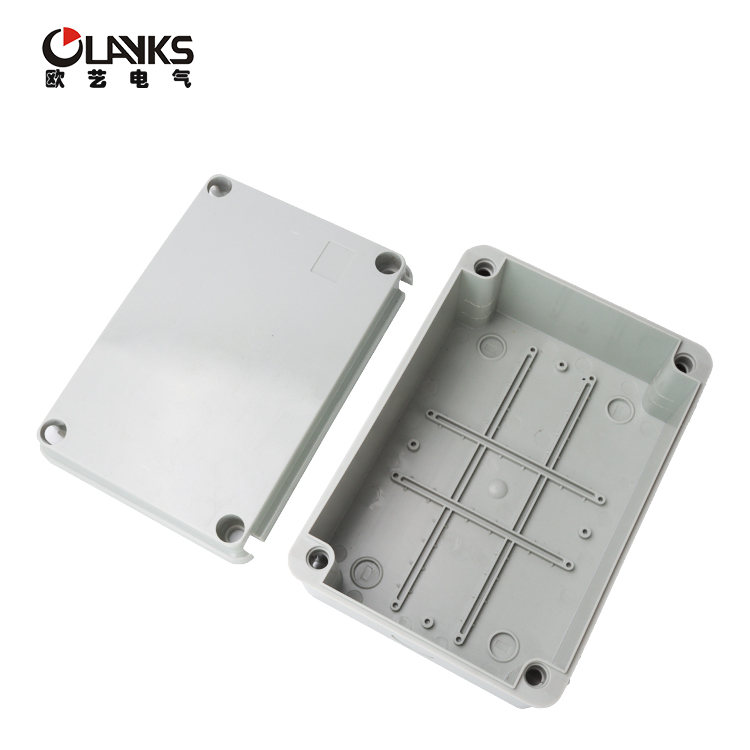

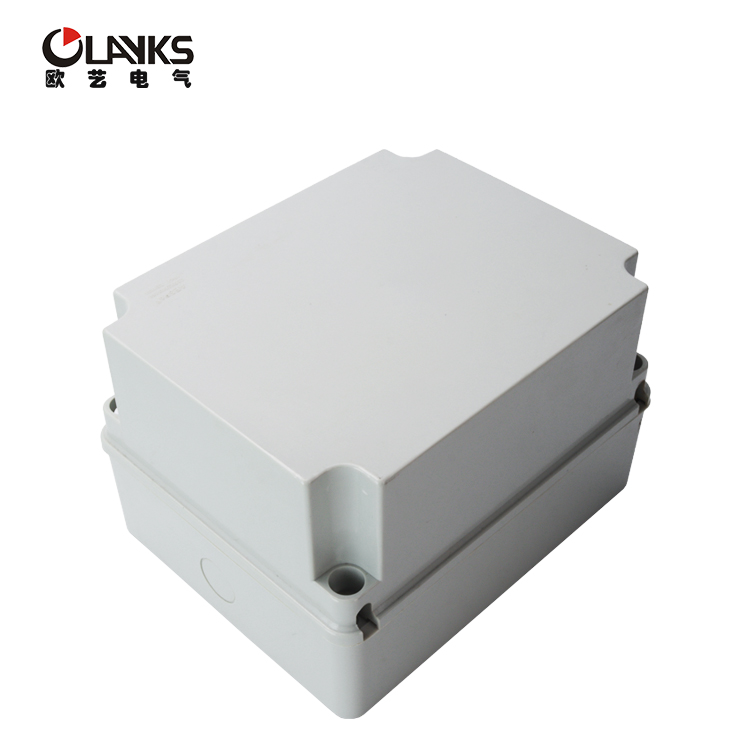

(1) The Olayks GWT-1 waterproof junction box features a sleek screwless lid design for quick access and a clean appearance, while maintaining reliable IP-rated weather protection.
(2) Made from halogen-free techno-polymer, it meets IEC 61140 Class II insulation standards and IK08 impact resistance, ensuring durability in harsh outdoor or industrial environments.
(3) Perfect for electrical wiring, cable management, and power distribution in residential, commercial, and marine applications.
· Made in Italy
· Insulation Class II (according to IEC 61140 Standards)
· IK08 Mechanical / Impact resistance
· Techno polymer Material - Halogen-Free in compliance with EN60754-2
· Finished in Grey RAL7035
· Glow Wire Test to 650°C
· Installation Temp -25°C to +60°C
· IP56 Rated - Suitable for Outdoor Installations - Stands up Against Heavy Rain
· Plain Sides - Allowing Cable Holes to be drilled into the box by the user wherever required
· IMQ and CE Marked - Conforms to The Market Requirements

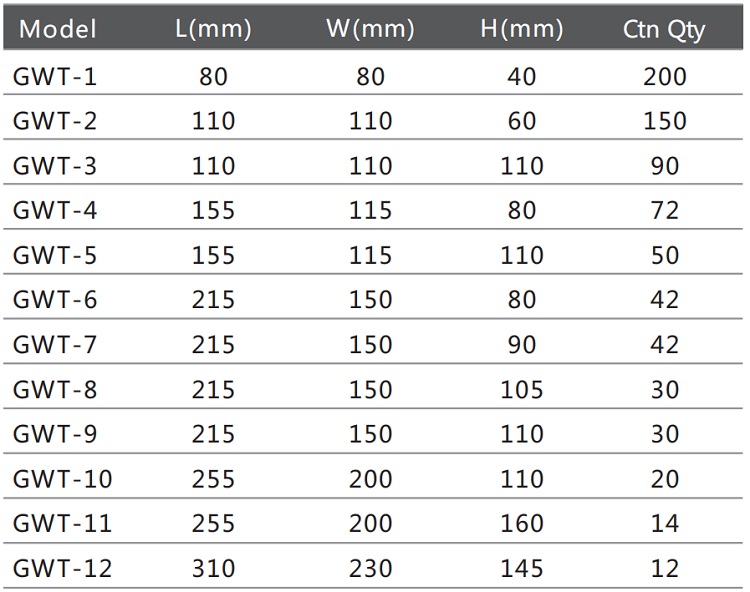

| Model | L(mm) | W(mm) | H(mm) | PCS/CTN |
|---|---|---|---|---|
| GWT-1 | 80 | 80 | 40 | 200 |
| GWT-2 | 110 | 110 | 60 | 150 |
| GWT-3 | 110 | 110 | 110 | 90 |
| GWT-4 | 155 | 115 | 80 | 72 |
| GWT-5 | 155 | 115 | 110 | 50 |
| GWT-6 | 215 | 150 | 80 | 42 |
| GWT-7 | 215 | 150 | 90 | 42 |
| GWT-8 | 215 | 150 | 105 | 30 |
| GWT-9 | 215 | 150 | 110 | 30 |
| GWT-10 | 255 | 200 | 110 | 20 |
| GWT-11 | 255 | 200 | 160 | 14 |
| GWT-12 | 310 | 230 | 145 | 12 |
